SANS: a unique technique to look inside plants’ leaves

Small-angle neutron scattering enabled researchers to look inside intact leaves to learn how their structure and functions change when submitted to environmental changes.

By Inês Crespo, 11/03/2015

Tobacco leaves The leaves analysed at JCNS. Pictures courtesy of TUM.

Plants’ leaves capture the sunlight and convert it into energy used to produce nutrients for their activities. This process is accomplished thanks to the presence of the thylakoid membrane system. While it is known that changes in the environmental conditions affect the structure and functions of the thylakoid membranes, the nature and dynamics of those changes are not fully understood.

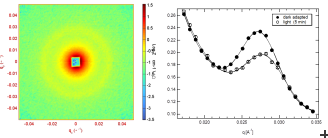

SANS profile of a tobacco leaf. 2D SANS profile (left) of a D2O-infiltrated tobacco leaf and radially averaged curves (right) obtained during the onset of photosynthesis. Courtesy of R. Ünnep.

To deepen understanding in this matter, a group of scientists from Hungary, France, Germany and Switzerland cultivated tobacco and peas in a greenhouse and went to the local market to buy spinach and lettuce, counting a total of eleven different species. They then analysed the leaves through small-angle neutron scattering (SANS) experiments at the Budapest Neutron Centre (BNC), Institut Laue-Langevin (ILL), Paul Scherrer Institute (PSI), and Jülich Centre for Neutron Scattering (JCNS). Complementary electron microscopy experiments were also conducted.

Quote Garab

This was the first time SANS was used to look at whole leaves and the technique proved to be very suitable. SANS has the advantage to look at the structure and properties of leaves without damaging them. The technique provided unique information on the structure of the thylakoid membrane system in rather quick experiments that lasted less than a minute. Such short experiments can open the way to dynamic studies. Results showed that when submitted to environmental changes such as different illumination, the organisation of thylakoid membranes changed significantly in the whole leaves.

Original Publication
Ünnep R, Zsiros O, Solymosi K, Kovács L, Lambrev PH, Tóth T, Schweins R, Posselt D, Székely NK, Rosta L, Nagy G, Garab G. (2014) The ultrastructure and flexibility of thylakoid membranes in leaves and isolated chloroplasts as revealed by small-angle neutron scattering. Biochim Biophys Acta, 1837(9):1572-80.
doi:10.1016/j.bbabio.2014.01.017

NMI3 thanks Győző Garab for reviewing this article and Renáta Ünnep for providing the figures.
O.Z. and G.G. have received NMI3 support to conduct experiments at the JCNS in Germany, and D.P. to conduct experiments at the BNC in Hungary.
